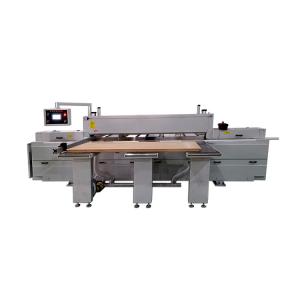

Horizontal Style CNC Panel Saw Machine for Wood Door Processing and Cutting Plywood

Condition : New

Type : CNC beam saw

Use : Woodworking, WOOD WORKING

Style : Horizontal

Place of Origin : Shandong, China

Voltage : 380;220;415

Dimension(L*W*H) : 5200mm*3900mm*1700mm

Warranty : 1 Year

Application : Wood Cutting, Wood door processing

Weight (KG) : 3000 KG

Power (kW) : 15

Key Selling Points : High-accuracy

Applicable Industries : Hotels, Garment Shops, Building Material Shops, Other, Garment Shops, Building Material Shops, Machinery

Marketing Type : New Product 2020

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor

Packaging Details : 1. Outside package: Standard marine export plywood cases.
2. Inner package: Stretch film and plastic film for humidity.
We can package according to your requests
Port
Qingdao port

Port : We can package according to your requests Port Qingdao port

Supply Ability : 100 Acre/Acres per Month

Price : $8,500.00/acres 1-2 acres

MOQ : 1 set

Contact Now

CNC beam saw

Product Description

Horizontal Style CNC Panel Saw Machine for Wood Door Processing and Cutting Plywood

Technical Paramaters:

Model	MJF2700/3300 Beam Saw
Saw length	2700mm/3300mm	Saw carriage forward speed	0-120m/min
Saw thickness	75mm/100mm/120mm	Saw carriage back speed	60-120m/min
Saw blade diameter	355mm/400mm/460mm	Head saw motor	7.5kw/11kw/18kw
Axis main saw blade diameter	30mm/60mm	Grooving saw motor	1.5kw
Main saw blade speed	3950rpm/4500rpm	Saw drive serve motor	1.5kw
Grooving saw blade diameter	180mm	Automatic feeding motor	1.5kw
Axis grooving saw blade diameter	30mm	High pressure blower motor	2.2kw
Grooving saw blade speed	5400rpm	Operation pressure	5-7kg/cm
Weight	3000kg/4000kg	Workbench height	950mm
Dimensions	5200mm3900mm1700mm / 5800mm3900mm1700mm
